Hammermill Surge Bin

The primary function of a hammermill surge bin in a biofuel process is to provide a controlled constant feed from a hammermill to a secondary source without taking on the wear & tear of operating a belt feeder associated with the larger sized biomass material, and yet maintain the required mobility. The surge bin is usually mounted on legs to elevate the bin to a height which permits a truck to be driven underneath the surge bin. A gate in the bottom of the surge bin is then opened and the material falls out of the bin into the truck below. Surge bins are often mounted on a trailer for easy mobility from one site to the next.

Figures

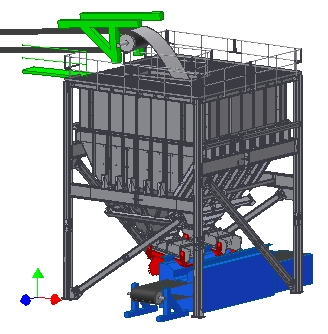

(source: http://www.dicionario-tecnico.com/definicao-significado/surge_bin_71241.html)

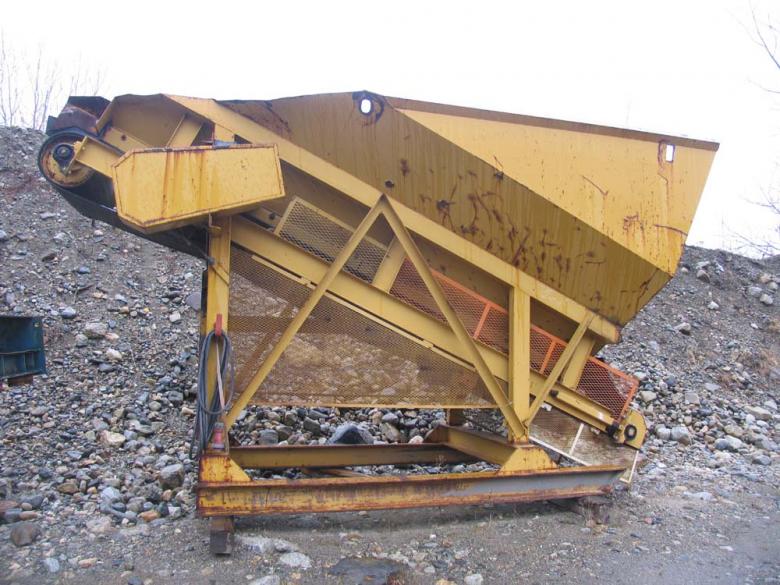

(source: http://www.sanger.net/images/surge_bin1.jpg)

Video

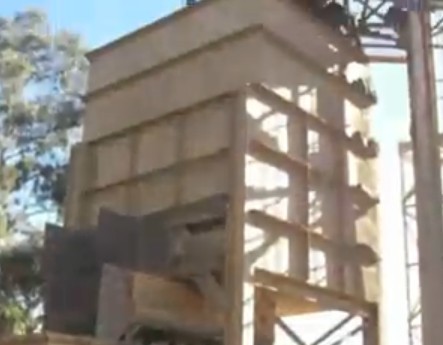

Surge Bin and Pan Feeder

References

1. Dallas, Daniel B. Tool and Manufacturing Engineers Handbook: A Reference Work for Manufacturing Engineers. New York: McGraw-Hill, 1976. Print.
