Fast Pyrolysis

Fast pyrolysis is a process involving rapid thermochemical conversion of carbon-containing fuel/feed to the process; this process happens in the absence of oxygen and at temperatures around 500°C for biomass. Moderate reactor temperature and low pressure conditions are typically used for operation; start-up time is relatively much shorter than that of gasification. Products from this process are: biochar,pyrolysis oil, and non-condensable gases. Rapid cooling of pyrolysis vapors is usually required soon after biochar content has been effectively reduced. This type of pyrolysis system/process will usually include some type of feed preparation (which usually reduces particle size), particulate removal, and a pyrolysis oil collection system.

Flow Diagrams

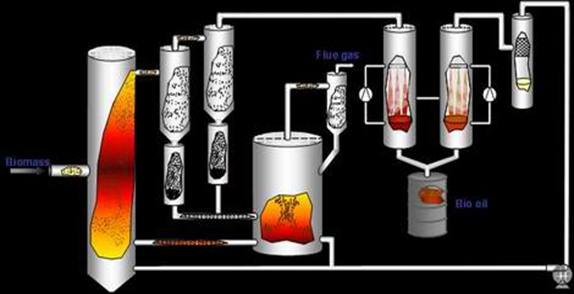

fstpyr1
(Source: http://www.pyne.co.uk/?_id=69)

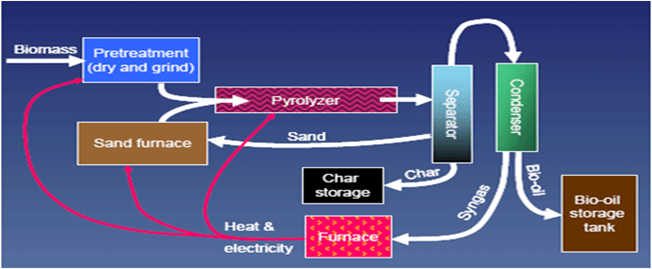

fstpyr2
(Source: http://www.ars.usda.gov/Main/docs.htm?docid=19898)

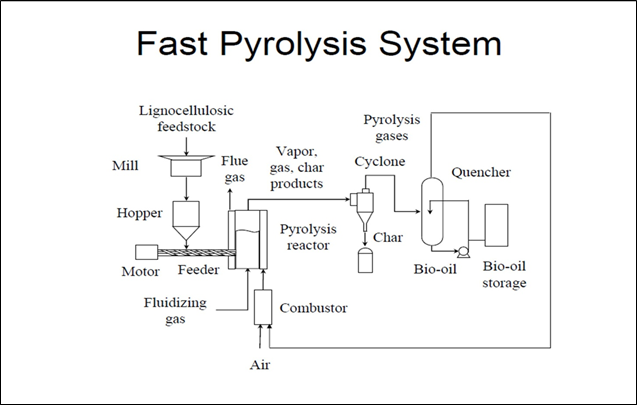

fstpyr3
(Source: http://www.ars.usda.gov/sp2UserFiles/Program/307/biomasstoDiesel/RobertBrown&JenniferHolmgrenpresentationslides.pdf)

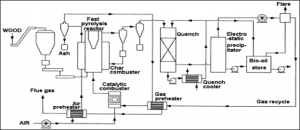

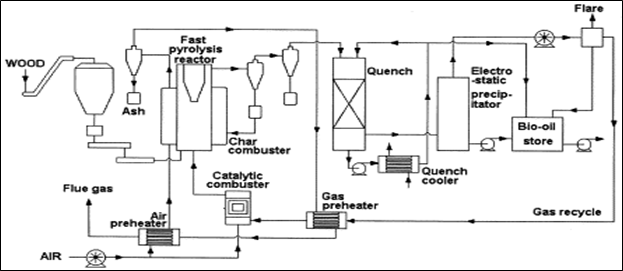

fstpyr4
(Source: http://www.sciencedirect.com/science/article/pii/S1364032199000076)

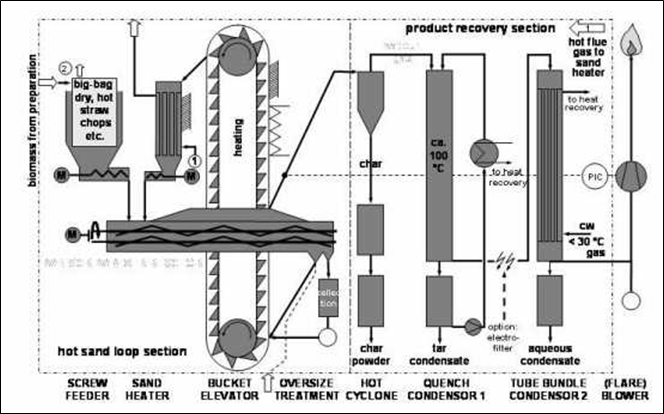

fstpyr5
(Source: http://www.ikft.kit.edu/english/181.php)
