Pyrolysis of Wood

Pyrolysis is a case of thermolysis, and is most commonly used for organic materials, being, therefore, one of the processes involved in charring. The pyrolysis of wood, which starts at 200–300 °C (390–570 °F), occurs for example in fires where solid fuels are burning or when vegetation comes into contact with lava in volcanic eruptions. In general, pyrolysis of organic substances produces gas and liquid products and leaves a solid residue richer in carbon content, char. Extreme pyrolysis, which leaves mostly carbon as the residue, is called carbonization.

Pyrolysis is the basis of several methods that are being developed for producing fuel from biomass, which may include either crops grown for the purpose or biological waste products from other industries. Crops studied as biomass feedstock for pyrolysis include native North American prairie grasses such as switchgrass (Panicum virgatum L.) and bred versions of other grasses such as Miscantheus giganteus. Crops and plant material wastes provide biomass feedstock on the basis of their lignocellulose portions.

Although synthetic diesel fuel cannot yet be produced directly by pyrolysis of organic materials, there is a way to produce similar liquid (bio-oil) that can be used as a fuel, after the removal of valuable bio-chemicals that can be used as food additives or pharmaceuticals. Higher efficiency is achieved by the so-called flash pyrolysis, in which finely divided feedstock is quickly heated to between 350 and 500 °C (660 and 930 °F) for less than 2 seconds.

Fuel bio-oil resembling light crude oil can also be produced by hydrous pyrolysis from many kinds of feedstock, including waste from pig and turkey farming, by a process called thermal depolymerization (which may, however, include other reactions besides pyrolysis)

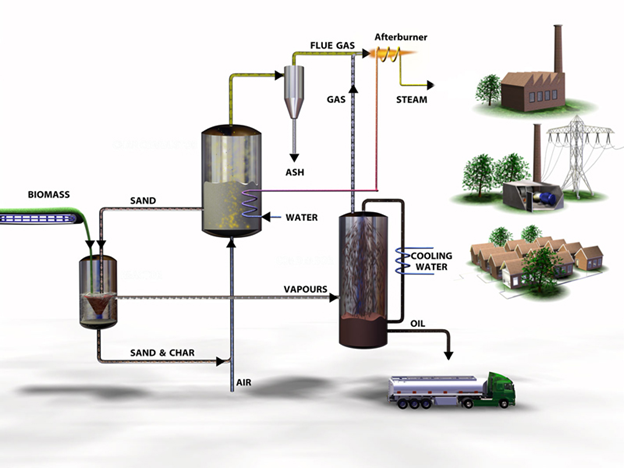

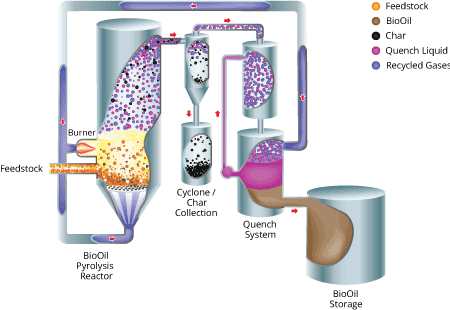

Flow Diagrams

 pw1
(Source: http://www.btgworld.com/media/cms_block/rtd-technologies-fast-pyrolysis-2.jpg)


pw2
(Source: http://www.dynamotive.com/assets/img/technology/fast-pyrolysis.png)

Equipment

Reactor
Cyclone filter
Condenser
Storage tank



Videos

Bio-Char, Bio-Oil & Syngas from Wood Pyrolysis
