Pyrolysis of Plastic

Pyrolysis is a process of thermal degradation of a material in the absence of oxygen. Plastic is continuously treated in a cylindrical chamber and the pyrolytic gases condensed in a specially-designed condenser system to yield a hydrocarbon distillate comprising straight and branched chain aliphatics, cyclic aliphatics and aromatic hydrocarbons. The resulting mixture is essentially equivalent to petroleum distillate. The plastic is pyrolised at 370ºC-420ºC and the pyrolysis gases are condensed and liquid separated using fractional distillation to produce the liquid fuel products.

The essential steps in the pyrolysis of plastics involve:

  1. evenly heating the plastic to a narrow temperature range without excessive temperature variations
  2. purging oxygen from pyrolysis chamber,
  3. managing the carbonaceous char by-product before it acts as a thermal insulator and lowers the heat transfer to the plastic
  4. careful condensation and fractionation of the pyrolysis vapors to produce distillate of good quality and consistency



Flow Diagrams

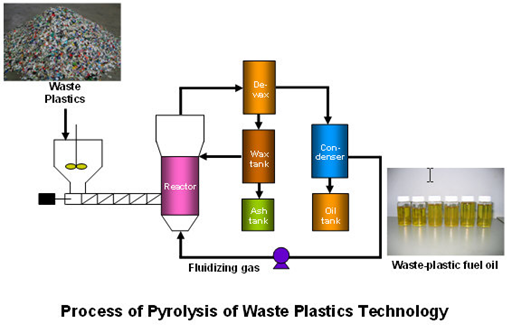

pp1
(Source: http://amudu-gowripalan.blogspot.com/2014/10/production-of-fuel-and-diesel-from-non.html)

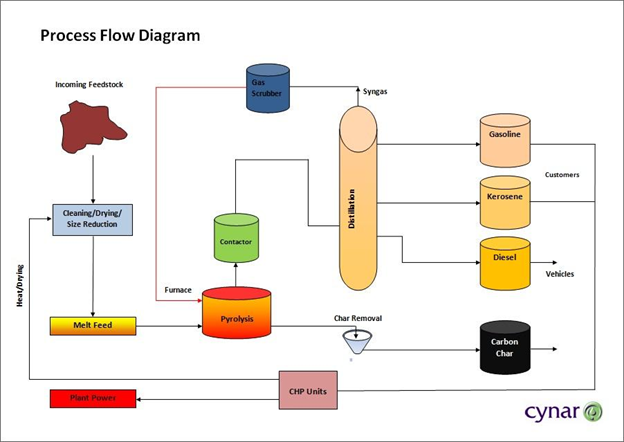

pp2
(Source: http://www.pacebutler.com/blog/plastic-to-fuel-recycling-gaining-traction-in-the-us/)

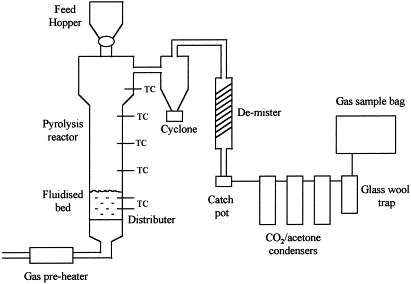

pp3
(Source: http://ars.els-cdn.com/content/image/1-s2.0-S016523709900011X-gr1.gif)


Equipment

Feed Hopper
Reactor
Fluidized bed
Distributer
Cyclone
Catch pot
Condenser



Videos

Hong Kong Company Converts Plastic to Fuel

References

  1. http://www.youtube.com/watch?v=BeccQTyGVX0
  2. http://www.cynarplc.com/cynar_technology.asp#Pyrolysis
  3. http://ars.els-cdn.com/content/image/1-s2.0-S016523709900011X-gr1.gif
  4. http://www.cynarplc.com/images/ProcessFlowDiagram.jpg
  5. http://www.itri.org.tw/eng/UpFile/_userfiles/image/Fuel%20Oil%20Produced%20from%20Pyrolysis%20of%20Waste%20Plastics.jpg
